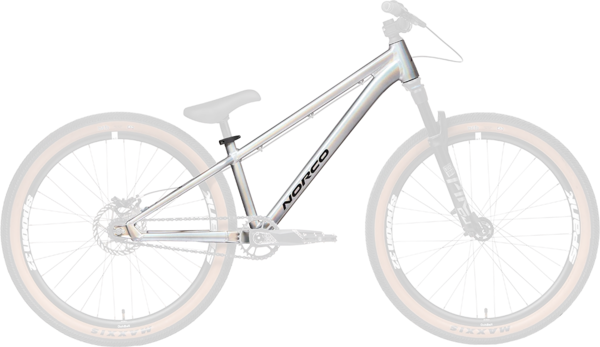

Norco Rampage Team Frame
$650.00
$799.00
Details
The Rampage Frame is the ultimate evolution in Dirt Jumpers with a light frame get up to speed fast with the perfect mix of agility and stability.
The Rampage Frame builds into?a?ready to rip rig.?
It's purpose-built for big air and features components hand-selected to rip.
Reasons It's Rad
- How your bike looks is just as important as how it rides.
- Lightweight aluminum frame built to last.
- Hand-picked components for function and reliability.
- Evolved frame features push the potential.
- Find your perfect ride.
| Frame Size | Small | Medium | Large |
|---|---|---|---|
| Wheel Size (in) | 26" | 26" | 26" |
| Travel (mm front) | 100 | 100 | 100 |
| Reach (mm) | 380 | 405 | 430 |
| Head Tube Angle (°) | 69 | 69 | 69 |
| Fork Offset (mm) | 40 | 40 | 40 |
| Seat Tube Length (mm) | 300 | 300 | 300 |
| Effective Seat Tube Angle (°) | 73 | 73 | 73 |
| Rear Centre Length (mm) | 389 | 389 | 389 |
| Bottom Bracket Rise/Drop (mm) | -20 | -20 | -20 |
| Bottom Bracket Height (mm) | 322 | 322 | 322 |
| Horizontal Top Tube (mm) | 551 | 577 | 604 |
| Wheelbase (mm) | 1018 | 1045 | 1072 |
| Standover (mm) | 581 | 576 | 577 |
| Head Tube Length (mm) | 110 | 115 | 120 |
| Trail (mm) | 88 | 88 | 88 |
| Stem Length (mm) | 35 | 35 | 35 |
| Crank Length (mm) | 170 | 170 | 170 |
| Tire Size (in) | 2.0-2.3" | 2.0-2.3" | 2.0-2.3" |
| Frame Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| X-Small | 4'9" - 5'1 1/2" | 147 - 157 |
| Small | 5'1" - 5'5" | 155 - 165 |
| Medium | 5'4 1/2" - 5'8 1/2" | 164 - 174 |
| Large | 5'8" - 6'0" | 172 - 182 |
| X-Large | 5'9 1/2" - 6'3 1/2" | 181 - 191 |
| XX-Large | 6'3" - 6'7" | 190 - 200 |
Specs
| Frame | Aluminum DJ 26", Slotted Dropout With Adjuster, Tapered Headtube, Smooth Welding |
|---|
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Silver/Black / Medium | 058817583476 | 0800112655 | 210000040620 |
